REFLECTOR panels may be used individually or linked together in various sizes and shape to form a larger cloud. Mounted on steel frames, Reflectors come in concave, convex and flat styles. Curved Reflectors have a standard 12′ radius. Custom radius and size available. Finishes include wood veneer, paint grade, or a high pressure laminate. For projects requiring sound absorption, Reflectors may be perforated, Microperf, or an acoustical backer may be installed.
Features
Appearance & Color
Available in wood veneer in the species shown in the color chart below*:

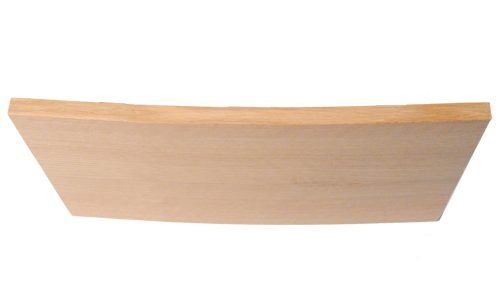

Convex, 12′ typical radius

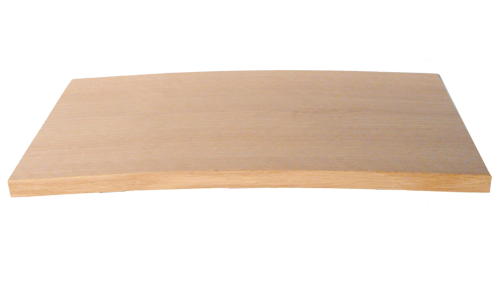

Concave, 12′ typical radius
Flat panels
Perforated, slotted, and Microperf
May be produced in high pressure laminate face
Perimeter trim available (mitered MDF only)
FSC available (LEED points possible)
Core
Available core materials are:
Particle Board and MDF
Class A Fire Rated Particle Board
Class A Fire Rated MDF
Finish & Fire-Rating
Reflectors may be finished in:
Lacquer Top Coat
Waterborne Acrylic
Acoustic Absorption
Optional features for sound control:
If perforated, NRC varies based on pattern
Echo Eliminator Acoustical Liner available in 1″ and 2″
Naturally reflects sound
Sizes
Reflectors are:
Maximum 60″x120″
Minimum 12″x24″
Curved Reflectors standard radius 12′
Custom radius may not be less than 48″
Mounting Options
Reflectors are available for ceiling applications through the following mounting systems (see Resources below to view standard details for specific mounting options):

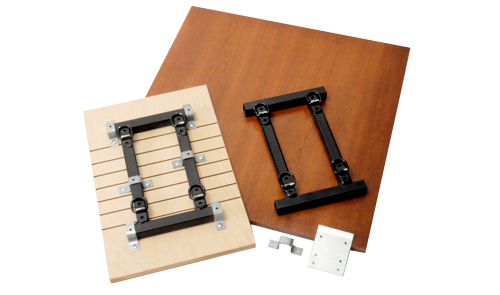

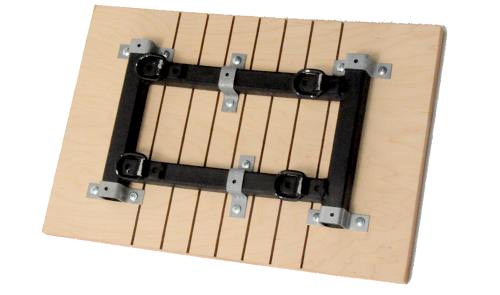

Steel Frames
Color Chart
-
- Ash
-
- Maple
-
- Beech
-
- Walnut
-
- Red Oak
-
- White Oak
-
- Hickory
-
- Cherry
-
- Natural Bamboo
-
- Caramelized Bamboo
**All natural wood products vary in color and grain. Due to monitor differences, the actual color may differ from the images on the screen.
Resources
| Click the icon to download its respective file: | .dwg | .doc | |
REFLECTOR CEILINGS DATASHEET |
 |
||
REFLECTOR CEILINGS STANDARD DETAILS |
|
 |
|
REFLECTOR CEILINGS CSI SPECS |
|
 |
