beam | Acoustigreen

FALSE BEAM systems provide a simple and inexpensive alternative to improve the design of a room. Acoustigreen’s False Beams hold the appearance of solid wood without the associated weight and cost. Custom widths, lengths, and depths available. The system is designed to fit together based on project requirements. Additionally, False Beams may be used alongside other ceiling systems. Veneer end matching available.

Features

Appearance & Color

Available in wood veneer in the species shown in the color chart below*:

Blocked end

Sleeved end

Finished end

Veneer end matching available

FSC available (LEED points possible)

Core

Available core materials are:

Particle Board and MDF

Class A Fire Rated Particle Board

Class A Fire Rated MDF

Finish & Fire-Rating

False Beams may be finished in:

Lacquer Top Coat

Waterborne Acrylic

Acoustic Absorption

False Beams are not acoustically rated at this time

Sizes

False Beams are:

Minimum 3″x3″x96″ (Width/Height)

Minimum 3″x3″x120″ (Width/Height)

Three beam faces not to exceed a total of 48″

Mounting Options

False Beams are available for ceiling applications through the following mounting systems (see Resources below to view standard details for specific mounting options):

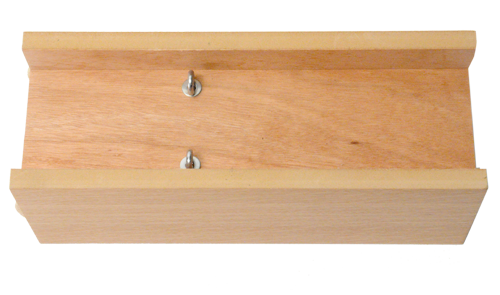

Eye-bolt Suspension
