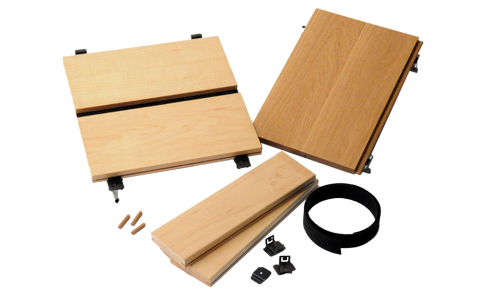

LINEAR wood systems come in Tongue and Groove (T&G) and Direct Attachment styles. Whether in solid wood or wood veneer, standard modules are 4” or 6”wide but may be up to 8”. Reveals between planks range between 1/8” to 3/4”, and PVC or felt filler strips are available. For projects requiring sound absorption, recycled cotton acoustical backer may be installed above Linear ceilings. Perimeter trim options are also available.
Features
Appearance & Color
Available in solid wood and wood veneer in the species shown in the color chart below*:
Linear and Linear T&G may be stained to match
T&G in three profiles: V-Groove, Flat V-Groove, and Butt Joint
T&G profile patterns may be custom fabricated
Scored, radius, or barrel vault using radius grid available
Perimeter trim up to 4″

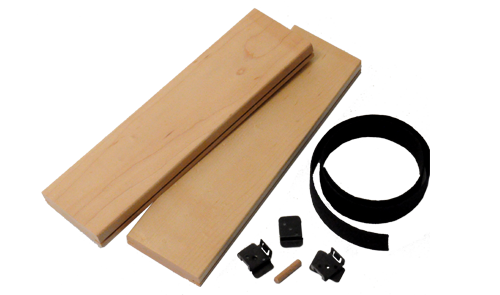

Felt or PVC filler strips to enhance reveals between panels
FSC available (LEED points possible)
Core
Available core materials are:
Solid Wood
Particle Board
MDF
Class A Fire Rated Particle Board
Class A Fire Rated MDF
Finish & Fire-Rating
Linear and Linear T&G may be finished in:
Class A Varnish
Lacquer Top Coat
Waterborne Acrylic
Fire-rated filler strips available
Hand wiped factory pre-finishing available
Acoustics & Construction
Acoustical and construction features include:
Echo Eliminator Acoustical Liner available in 1″ and 2″
Quiet Liner Acoustical Cotton available

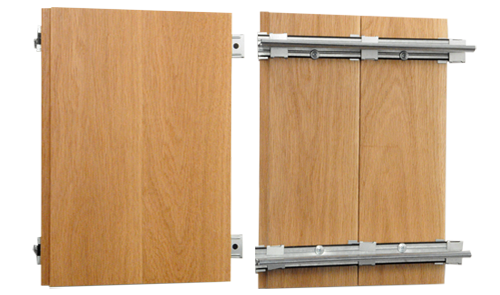

Linear and Linear T&G are doweled for alignment
Linear clips require no special tools for installation
Linear T&G clips concealed for plank face uniformity
Sizes
Standard Linear and Linear T&G are:
3/4″ thick and come in 4″ and 6″ modules (up to 8″)
Linear reveals between 1/4″ to 3/4″
Solid Wood available in random lengths between 3′ and 10′
Veneer available in 8′ and 10′ lengths
Specified lengths are available for both system styles
Mounting Options
Linear and Linear T&G are available for ceiling and wall through the following mounting systems (see Resources below to view standard details for specific mounting options):

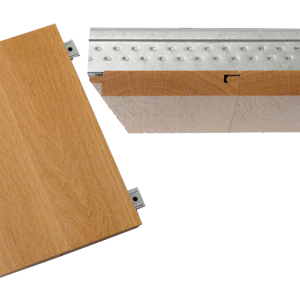

Linear T&G clip to 15/16″ heavy duty T-bar grid

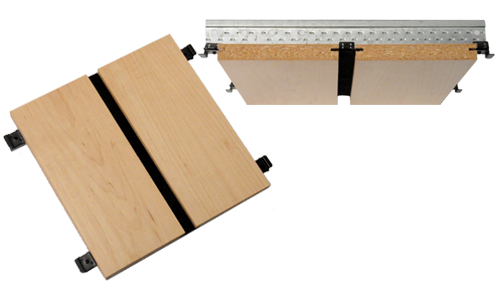

Linear attachment clip to 15/16″ heavy duty T-bar grid
Linear T&G clip mounted to vertical surfaces
Linear Direct Attachment clip vertical surface
Color Chart
-
- Ash
-
- Maple
-
- Beech
-
- Walnut
-
- Red Oak
-
- White Oak
-
- Hickory
-
- Cherry
-
- Natural Bamboo
-
- Caramelized Bamboo
**All natural wood products vary in color and grain. Due to monitor differences, the actual color may differ from the images on the screen.
Resources
| Click the icon to download its respective file: | .dwg | .doc | |
LINEAR WALLS DATASHEET |
 |
||
LINEAR WALLS STANDARD DETAILS |
|
 |
|
LINEAR TONGUE AND GROOVE WALLS STANDARD DETAILS |
|
|
| Click the icon to download its respective file: | .dwg | .doc | |
LINEAR CEILINGS DATASHEET |
|
||
LINEAR CEILINGS STANDARD DETAILS |
|
|
|
LINEAR TONGUE AND GROOVE CEILINGS STANDARD DETAILS |
|
|
|
LINEAR CEILINGS CSI SPECS |
|
 |
