fusion

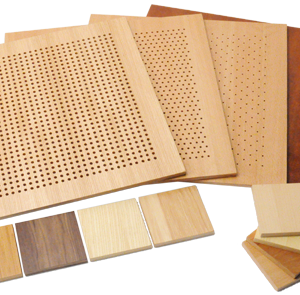

FUSION acoustic ceiling and wall panels feature wood veneer or solid wood, either in flat panels or with a variety of perforation options. Standard perforations are available in 4mm, 6mm, and 8mm diameter holes spaced 16mm or 32mm on center in both square and diamond patterns. Custom diameter, spacing, and patterns are available, as well as slotted designs. For projects requiring sound absorption, acoustical backer may be installed above Fusion ceiling or behind Fusion wall panels.


Features
Appearance & Color

Available in wood veneer in the species shown in the color chart below*:

Standard perforations in 4mm, 6mm, and 8mm diameter

Slotted and custom perforations available

Perforation spacing 16mm and 32mm O.C. typical, in square or diamond pattern

Fusion Flat and Fusion Perforated may be stained to match

FSC available (LEED points possible)

Core

Available core materials are:

Particle Board

MDF

Class A Fire Rated Particle Board

Class A Fire Rated MDF



Finish & Fire-Rating

Fusion Flat or Fusion Perforated may be finished in:

Lacquer Top Coat

Waterborne Acrylic

Touch-up paint available for field application

Acoustic Absorption

Optional features for sound control:

Acoustically absorptive when perforated

NRC varies based on the hole pattern

Soundtex applied to back for acoustical absorption

Echo Eliminator Acoustical Liner available in 1″ and 2″



Sizes

Standard Fusion Flat or Fusion Perforated are:

Maximum ceiling size 2’x8′

Maximum wall size 4’x8′

Available in custom sizes to meet project criteria

Mounting Options

Fusion Flat and Fusion Perforated are available for ceiling and wall through the following mounting systems (see Resources below to view standard details for specific mounting options):


Ceilings

Lay-In Tiles

Tegular Edge

Lift and Shift

Lift and Twist

Torsion Spring

Walls

Z-Clip/Z-Bar

Color Chart
*Different species may increase production lead time.
**All natural wood products vary in color and grain. Due to monitor differences, the actual color may differ from the images on the screen.
